How to Export/Back Up Your SSL Certificate w/Private Key in IIS 10



1. On the Windows server 2016 where the SSL certificate is installed, open the Console.
In the Windows start menu, type "mmc" and open it.



Windows 2016 Start Menu

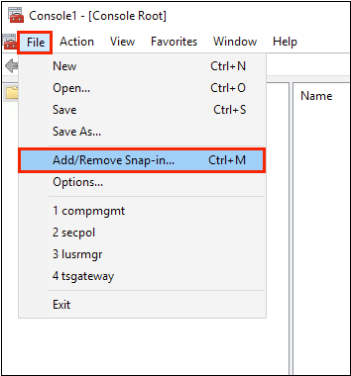

2. In the Console window, in the top menu, click "File" > "Add/Remove Snap-in".



Under File Select Add/Remove Snap-in...

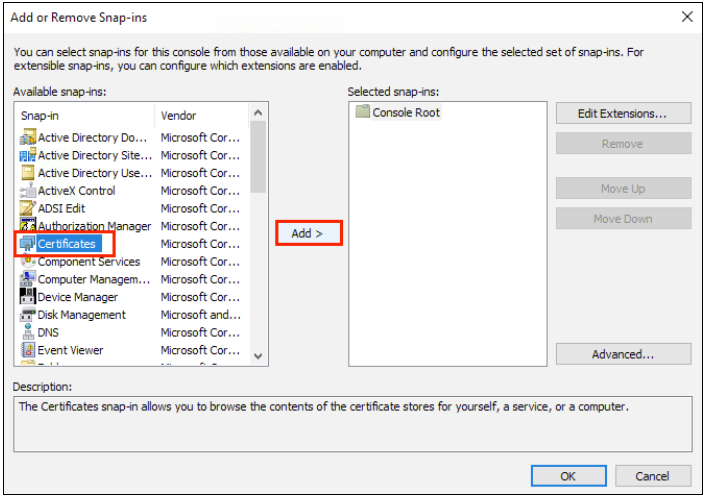

3. In the Add or Remove Snap-ins window, in the Available snap-ins pane (left side), select "Certificates" and then click "Add >".



Add Certificate in Add Or Remove Snap-Ins Window

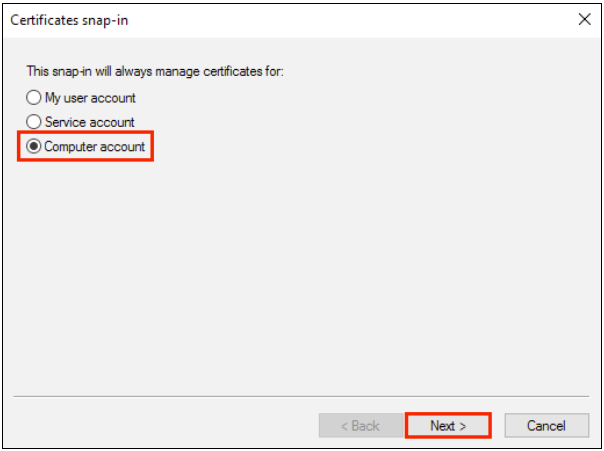

4. In the Certificate snap-in window, select "Computer account" and then click "Next".



Certificates Snap In Menu, Selecting Computer Account



5. In the Select Computer window, select "Local computer: (the computer this console is running on)", and then click "Finish".



Select Computer Window Clicking the Local Computer radio button

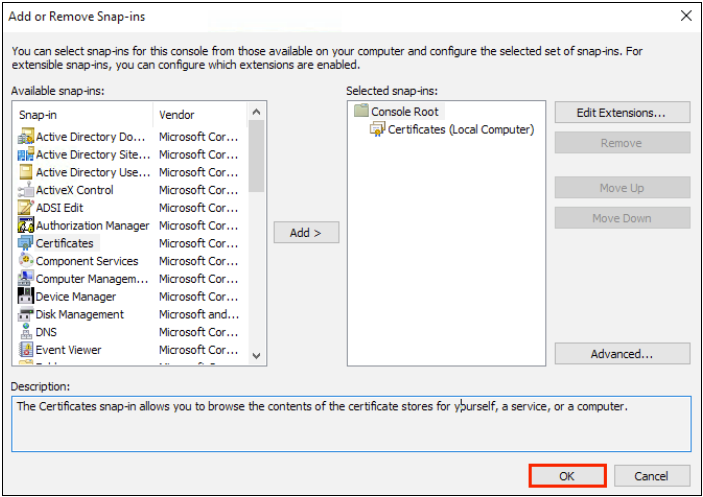

6. In the Add or Remove Snap-ins window, click "OK".



Add Or Remove Snap Ins Window - Click OK

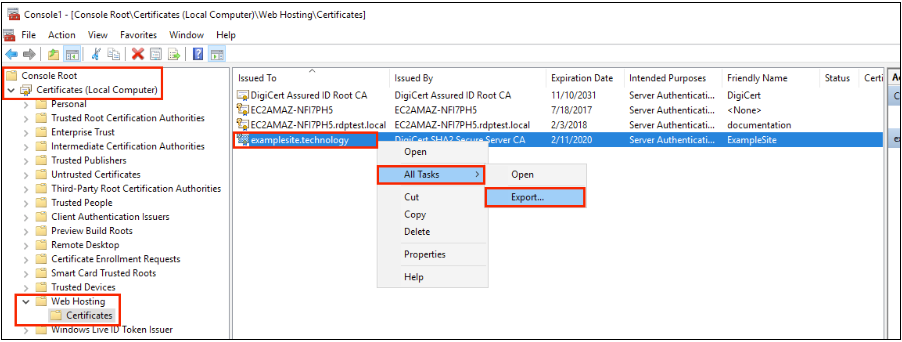

7. In the Console window, in the Console Root pane (left side), expand Certificates (Local Computer), expand the folder that contains the certificate that you want to export/back up, and then, click the associated Certificates folder.

Note: Your certificate should be in either the Personal or the Web Hosting folder.



select certificate, select All Tasks, and then Export



8. In the center pane, right-click on the certificate that you want to export/back up and then click "All Tasks >" "Export".

9. In the Certificate Export Wizard, on the Welcome to the Certificate Export Wizard page, click "Next".

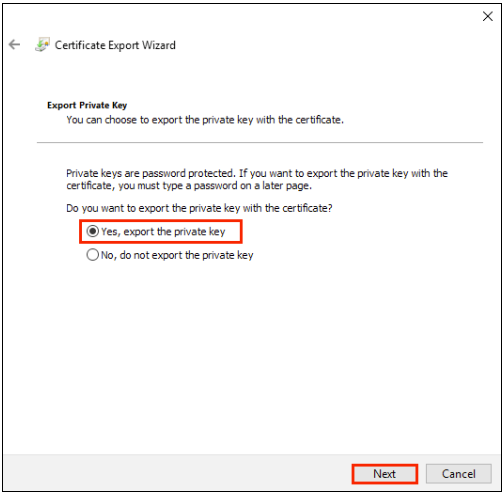

10. On the Export Private Key page, select Yes, export the private key, and then, click "Next".



Yes, export private key option highlighted and Next button highlighted

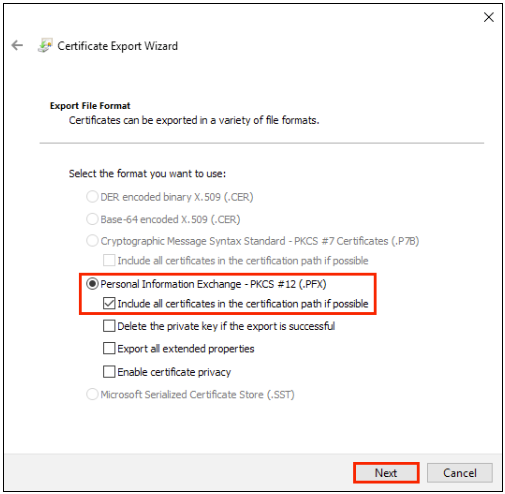

11. On the Export File Format page, select Personal Information Exchange – PKCS #12 (.PFX) and then check Include all certificates in the certification path if possible.

Warning: Do not select Delete the private key if the export is successful.



Select Personal Information Exchange and check "Include all certificates in certification path if possible"

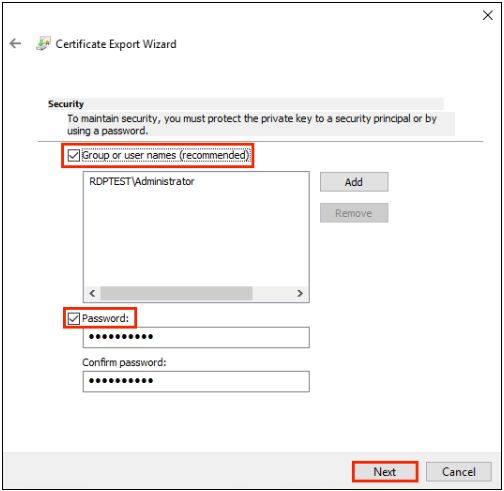

12. On the Security page, do the following:

Password/Confirm Password:

  1. Check this box
  2. Then, create and confirm the password. Note: This password will be required when you import the certificate w/private key to your (different) Windows server 2016

Group or user name (recommended):

  1.  Check this box
  2. In the field below, select the Active Directory user or group account to which you want to assign access to the certificate w/private key.
  3. Then, click "Add". Note: The server from which you export the certificate w/private key must be part of an AD domain. The server to which you import the certificate w/private key must be tied to an AD domain with a domain controller (DC).
Certificate Export Wizard select group or username and set password

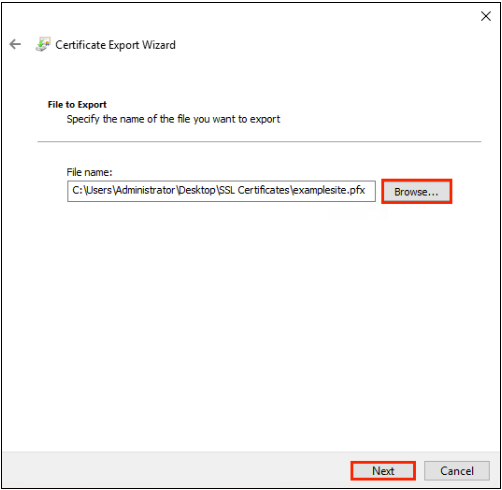

13. On the File to Export page, click "Browse". In the Save As window, locate and select the certificate file that you want to export and then click "Save". Finally, on the File to Export page, click "Next".

Make sure to note the filename and the location where you saved your file. If you only enter the filename without selecting a location, your file is saved to the following location: C:\Windows\System32.



click browse and then save



14. On the Completing the Certificate Export Wizard page, verify that the settings are correct and then, click "Finish".



Verify Results and the click finish: Certificate Export Wizard page



15. You should receive "The export was successful" message.

The SSL certificate w/private key .pfx file is now saved to the location that you selected.
